VMQ SILICONE 硅胶垫圈
ERIKS专为制药行业研发的714703系列铂金硫化硅胶垫圈，材料符合USP Class VI级溶出析出标准，其USP测试标准参考：USP 30,NF25,2007.<88>Biological Reactivity Tests，in vivo. Extraction conditions 121±2℃ for 1 ± 0,1 hour.
Description
| Chemical composition: Methyl-vinyl silicone rubber |
| Physical form: Triclamps |
| Colour: Transparent |
| Temperature resistance: -50℃ to +200℃ |
Application
| Pharma |
| Foodstuffs |
Approvals and compliances
| USP class VI <88> |
| European Pharmacopoeia 3.1.9 |
| FDA 21 CFR 177.2600 |
| EC1935:2004 |
| ADI |
| REACH |
| RoHS |
Additional infomation
| Platinum cured |
Physical Properties
| Property | Test standard | Value | Unit |
|---|---|---|---|
| Hardness | ASTM D2240 | 75 | Shore A |
| Elongation at break | ASTM D412 | 450 | % |
| Tensil strength | ASTM D412 | 8.9 | MPa |
| Compression set -24 hours at 175℃ Slab | ASTM D395 | 32 | % |

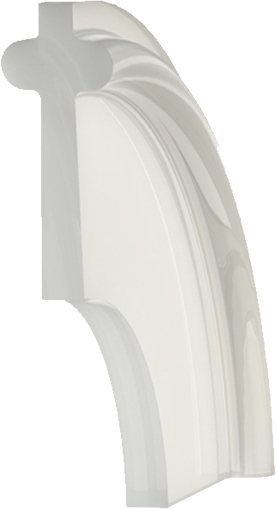

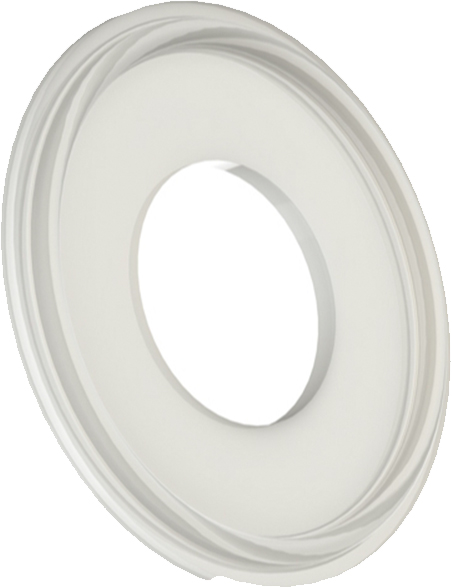

Triclamp Seal VMQ 714703 without lip
| Type triclampring | Internal diameter | Outer diameter | Standard couplingring | Dimension couplingring | Seal material | Compound | Colour | Article |
|---|---|---|---|---|---|---|---|---|
| mm | mm | |||||||
| Without lip | 22.8 | 50.5 | ASME-BPE 2009 | 1" | VMQ/Silicone | 714703 | Transparent | 12751395 |
| Without lip | 22.8 | 50.5 | BS4825 | 1" | VMQ/Silicone | 714703 | Transparent | 12936798 |
| Without lip | 35.8 | 50.5 | ASME-BPE 2009 | 1.1/2" | VMQ/Silicone | 714703 | Transparent | 12735819 |
| Without lip | 35.8 | 50.5 | BS4825 | 1.1/2" | VMQ/Silicone | 714703 | Transparent | 12936810 |
| Without lip | 48.8 | 64 | BS4825 | 2" | VMQ/Silicone | 714703 | Transparent | 12936918 |
| Without lip | 60.5 | 77.5 | ASME-BPE 2009 | 2.1/2" | VMQ/Silicone | 714703 | Transparent | 12751418 |
| Without lip | 60.5 | 77.5 | BS4825 | 2.1/2" | VMQ/Silicone | 714703 | Transparent | 12936822 |
| Without lip | 73.1 | 91 | ASME-BPE 2009 | 3" | VMQ/Silicone | 714703 | Transparent | 12751396 |
| Without lip | 73.1 | 91 | BS4825 | 3" | VMQ/Silicone | 714703 | Transparent | 12936834 |
| Without lip | 97.8 | 119 | ASME-BPE 2009 | 4" | VMQ/Silicone | 714703 | Transparent | 12751397 |
| Without lip | 147.1 | 167 | ASME-BPE 2009 | 6" | VMQ/Silicone | 714703 | Transparent | 12751398 |

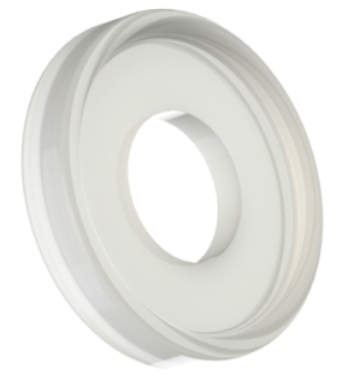

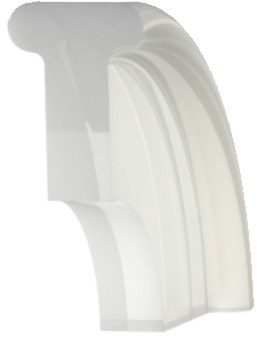

Triclamp Seal VMQ 714703 mini
| Type triclampring | Internal diameter | Standard couplingring | Dimension couplingring | Seal material | Compound | Colour | Article |
|---|---|---|---|---|---|---|---|
| mm | |||||||
| Mini | 9.6 | ASME-BPE 2009 | 1/2" | VMQ/Silicone | 714703 | Transparent | 12730252 |
| Mini | 16 | ASME-BPE 2009 | 3/4" | VMQ/Silicone | 714703 | Transparent | 12679406 |
