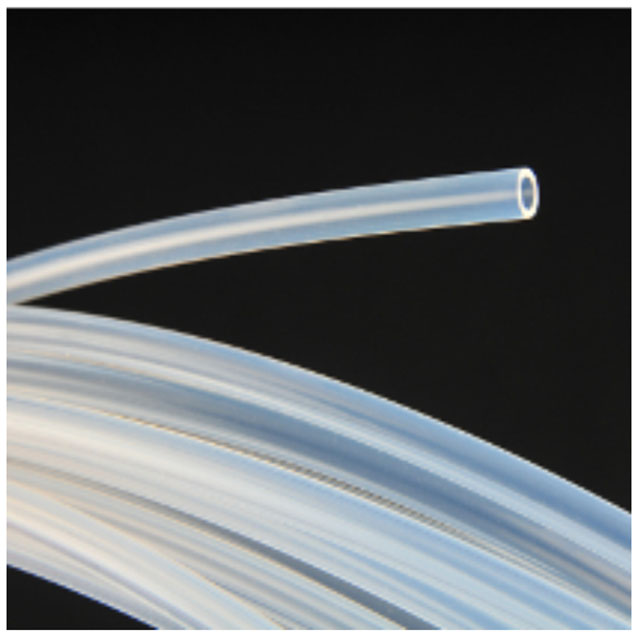

TBL Pharm-A-Clear™ C铂金硫化硅胶管
Pharm-A-Clear-C可满足生物制药行业最严苛的要求，ISO 7级洁净室内生产包装，广泛应用于液体介质输送，蠕动泵传输以及生物制药领域。并可作为SUS一次性生物反应系统中常用的软管耗材，尺寸型号可满足绝大多数泵头生产商的标准尺寸。
适合：蠕动泵 ⁄ 制药设备 ⁄ 制药用水 ⁄ 细胞培养 ⁄ 洁净灌装
产品标准
- 美国CFR Title 21 Section 177.2600
- 美国药典U.S. Pharmacopoeia Class VI
- 无细胞毒性 Cytotoxicity Criteria
- ISO 10993-5
Pharm-A-Clear-C可满足生物制药行业最严苛的要求，ISO 7级洁净室内生产包装，广泛应用于液体介质输送，蠕动泵传输以及生物制药领域。并可作为SUS一次性生物反应系统中常用的软管耗材，尺寸型号可满足绝大多数泵头生产商的标准尺寸。
适合：蠕动泵 ⁄ 制药设备 ⁄ 制药用水 ⁄ 细胞培养 ⁄ 洁净灌装
产品标准
- 美国CFR Title 21 Section 177.2600
- 美国药典U.S. Pharmacopoeia Class VI
- 无细胞毒性 Cytotoxicity Criteria
- ISO 10993-5
物理性能 | Pharm-A-Clear C (Platinum-Cured Silicone)
| Physical Properties | Value | ASMT Test |
|---|---|---|
| Specific Gravity | 1.15 | |
| Hardness, Shore A | 50 | ASTM D2240 |
| Tensile Strength psi (Mpa) | 1200 (8.3) | ASTM D412 |
| Elongation (%) | 720% | ASTM D412 |
| Tear Resistance, Die B Ibf./in. (KN/m) | 200 (35.1) | ASTM D624 |
| Tensile Modulus @ 100% psi (Mpa) | 250 (1.7) | ASTM D412 |
| Temperature Rating, Deg. F | 400 |
Sizing Chart | Silicone Platinum Cured US Standard*
| Part Number | ID | OD | Wall | Pump size | Std,Length |
|---|---|---|---|---|---|
| PLTS-*-021X144 | .02" | 0.144" | 1/16" | 25’,50’,100’ | |
| PLTS-*-031X093 | 1/32" | 3/32" | 1/32" | 25’,50’,100’ | |
| PLTS-*-031X156 | 1/32" | 5/32" | 1/16" | #13 | 25’,50’,100’ |
| PLTS-*-062X187 | 1/16" | 3/16" | 1/16" | #14 | 25’,50’,100’ |
| PLTS-*-125X250 | 1/8" | 1/4" | 1/16" | #16 | 25’,50’,100’ |
| PLTS-*-125X312 | 1/8" | 5/16" | 3/32" | 25’,50’,100’ | |
| PLTS-*-187X312 | 3/16" | 5/16" | 1/16" | #03, #25 | 25’,50’,100’ |
| PLTS-*-187X375 | 3/16" | 3/8" | 3/32" | #15 | 25’,50’,100’ |
| PLTS-*-250X375 | 1/4" | 3/8" | 1/16" | #17 | 25’,50’,100’ |
| PLTS-*-250X437 | 1/4" | 7/16" | 3/32" | #24 | 25’,50’,100’ |
| PLTS-*-250X500 | 1/4" | 1/2" | 1/8" | #26 | 25’,50’,100’ |
| PLTS-*-312X375 | 5/16" | 3/8" | 1/32" | 25’,50’,100’ | |
| PLTS-*-312X437 | 5/16" | 7/16" | 1/16" | #18 | 25’,50’,100’ |
| PLTS-*-312X500 | 5/16" | 1/2" | 3/32" | 25’,50’,100’ | |
| PLTS-*-375X500 | 3/8" | 1/2" | 1/16" | #96 | 25’,50’,100’ |
| PLTS-*-375X562 | 3/8" | 9/16" | 3/32" | #73 | 25’,50’,100’ |
| PLTS-*-375X625 | 3/8" | 5/8" | 1/8" | #81 | 25’,50’,100’ |
| PLTS-*-500X750 | 1/2" | 3/4" | 1/8" | #82 | 25’,50’,100’ |
| PLTS-*-625X812 | 5/8" | 13/16" | 3/32" | 25’,50’,100’ | |
| PLTS-*-625X875 | 5/8" | 7/8" | 1/8" | 25’,50’,100’ | |
| PLTS-*-750X1156 | 3/4" | 1-5/32" | 1/8" | 25’,50’,100’ | |
| PLTS-*-750X1125 | 3/4" | 1-1/8" | 3/16" | #90, #191 | 25’,50’,100’ |
| PLTS-*-100X1250 | 1" | 1-1/4" | 1/8" | 25’,50’,100’ | |
| PLTS-*-100X1375 | 1" | 1-3/8" | 3/16" | #92 | 25’,50’,100’ |
