EPDM三元乙丙垫圈
ERIKS特殊研发配方的EPDM三元乙丙橡胶材料经过氧化物硫化制成，配方具有良好的耐高温性以及良好的抗机械疲劳特性，特别适合用于食品、制药行业。材料符合USPclassVI,USP30，NF25,2007 <88> Biological Reactivity Tests,invivo,溶出测试环境为Extraction conditions 121±2℃ for 1e0，1hour.
Description
| Chemical composition: Terpolymer of ethylene, propylene and diene |
| Physical form: O-rings, moulded parts and triclamps |
| Colour: Black |
| Temperature resistance: -45℃ to +150℃ |
Application
| Pharmaceutical |
| Food contact |
Compliances
| USP class VI <88><381> |
| FDA CFR 177.2600 |
| EC1935:2004 |
| ADI |
| REACH |
| RoHS |
Additional infomation
| USP 35, NF 30, chapter <381> Elastomeric Klozures for injections, section physico-chemical tests. |
| Extraction tested |
| Migration tested |
| O-rings available from stock |
Physical Properties
| Property | Test standard | Value | Unit |
|---|---|---|---|
| Hardness | ASTM D2240 | 70±5 | Shore A |
| Elongation at break | ASTM D412 | 190 | % |
| Tensil strength | ASTM D412 | 14 | MPa |
| 100% Modulus | ASTM D412 | 5.5 | MPa |
| Compression set -24 hours at 125℃ Slab | ASTM D395 | 13 | % |
Ageing properties
| Property | Test standard | Value | Unit |
|---|---|---|---|
| Heat ageing -70hours at 150℃ | ASTM D573 | ||
| Hardness change | 1 | Shore A | |
| Elongation at break change | -18 | % | |
| Tensile strength change | -18 | % | |
| Immersion in water -70 hours at 100℃ | ASTM D417 | ||
| Hardness change | -2 | Shore A | |
| Elongation at break change | 1 | % | |
| Tensile strength change | -3 | % | |
| Volume change | 1.3 | % |

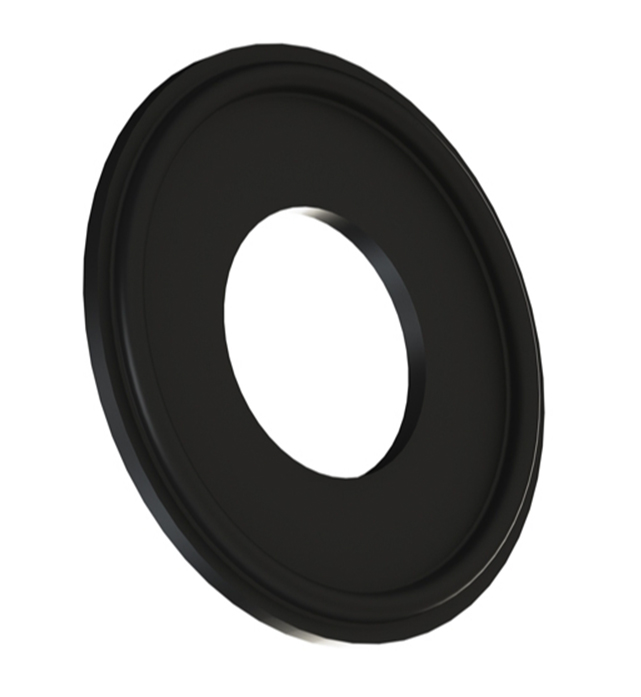

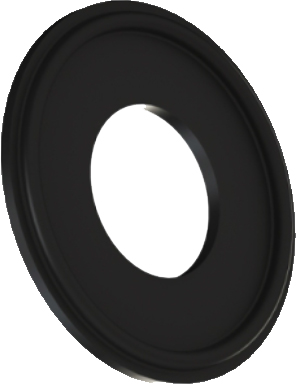

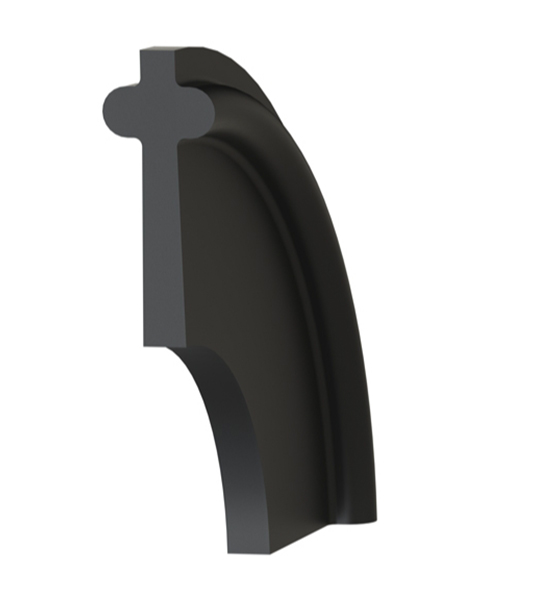

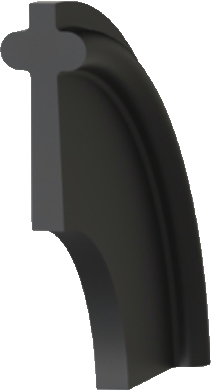

Triclamp Seal EPDM without lip
| Type triclampring | Internal diameter | Outer diameter | Standard couplingring | Dimension couplingring | Seal material | Compound | Colour | Article |
|---|---|---|---|---|---|---|---|---|
| mm | mm | |||||||
| Without lip | 22.8 | 50.5 | ASME-BPE 2009 | 1" | EPDM | 559273 | Black | 12751380 |
| Without lip | 22.8 | 50.5 | BS4825 | 1" | EPDM | 559273 | Black | 12936794 |
| Without lip | 22.8 | 50.5 | SMS3017 | DN 25 | EPDM | 559273 | Black | 12936793 |
| Without lip | 35.8 | 50.5 | ASME-BPE 2009 | 1.1/2" | EPDM | 559273 | Black | 12734654 |
| Without lip | 35.8 | 50.5 | BS4825 | 1.1/2" | EPDM | 559273 | Black | 12936806 |
| Without lip | 35.8 | 50.5 | SMS3017 | DN 38 | EPDM | 559273 | Black | 12936805 |
| Without lip | 48.2 | 64 | ASME-BPE 2009 | 2" | EPDM | 559273 | Black | 12751381 |
| Without lip | 60.5 | 77.5 | ASME-BPE 2009 | 2.1/2" | EPDM | 559273 | Black | 12751414 |
| Without lip | 60.5 | 77.5 | BS4825 | 2.1/2" | EPDM | 559273 | Black | 12936818 |
| Without lip | 60.5 | 77.5 | SMS3017 | DN 63.5 | EPDM | 559273 | Black | 12936817 |
| Without lip | 73.1 | 91 | ASME-BPE 2009 | 3" | EPDM | 559273 | Black | 12751382 |
| Without lip | 73.1 | 91 | BS4825 | 3" | EPDM | 559273 | Black | 12936830 |
| Without lip | 73.1 | 91 | SMS3017 | DN 76.1 | EPDM | 559273 | Black | 12936829 |
| Without lip | 97.8 | 119 | ASME-BPE 2009 | 4" | EPDM | 559273 | Black | 12751393 |
| Without lip | 97.8 | 119 | BS4825 | 4" | EPDM | 559273 | Black | 12936842 |
| Without lip | 97.8 | 119 | SMS3017 | DN 101.6 | EPDM | 559273 | Black | 12936841 |

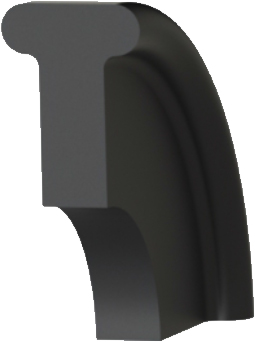

Triclamp Seal EPDM mini
| Type triclampring | Internal diameter | Standard couplingring | Dimension couplingring | Seal material | Compound | Colour | Article |
|---|---|---|---|---|---|---|---|
| mm | |||||||
| Mini | 4.8 | ASME-BPE 2009 | 1/4" | EPDM | 559273 | Black | 12751416 |
| Mini | 8.2 | ASME-BPE 2009 | 3/8" | EPDM | 559273 | Black | 12751417 |
| Mini | 8.2 | ISO1127 | DN 8 | EPDM | 559273 | Black | 12751494 |
| Mini | 9.6 | ASME-BPE 2009 | 1/2" | EPDM | 559273 | Black | 12751415 |
| Mini | 14.2 | ISO1127 | DN 10 | EPDM | 559273 | Black | 12696797 |
| Mini | 16 | ASME-BPE 2009 | 3/4" | EPDM | 559273 | Black | 12696798 |
ERIKS特殊研发配方的EPDM三元乙丙橡胶材料经过氧化物硫化制成，配方具有良好的耐高温性以及超强的抗机械疲劳特性，特别适合用于食品、制药行业。材料符合USPclassVI,USP30，NF25,2007 <88> Biological Reactivity Tests,invivo,溶出测试环境为Extraction conditions 121±2℃ for 1e0，1hour.
Description
| Chemical composition: Terpolymer of ethylene, propylene and diene |
| Physical form: O-rings, moulded parts and triclamps |
| Colour: Black |
| Temperature resistance: -45℃ to +150℃ |
Application
| Pharmaceutical |
| Food contact |
Compliances
| USP class VI <88><381> |
| FDA CFR 177.2600 |
| EC1935:2004 |
| ADI |
| REACH |
| RoHS |
Additional infomation
| USP 35, NF 30, chapter <381> Elastomeric Klozures for injections, section physico-chemical tests. |
| Extraction tested |
| Migration tested |
| O-rings available from stock |
Physical properties
| Property | Test standard | Value | Unit |
|---|---|---|---|
| Hardness | ASTM D2240 | 70±5 | Shore A |
| Elongation at break | ASTM D412 | 190 | % |
| Tensil strength | ASTM D412 | 14 | MPa |
| 100% Modulus | ASTM D412 | 5.5 | MPa |
| Compression set -24 hours at 125℃ Slab | ASTM D395 | 13 | % |
Ageing properties
| Property | Test standard | Value | Unit |
|---|---|---|---|
| Heat ageing -70hours at 150℃ | ASTM D573 | ||
| Hardness change | 1 | Shore A | |
| Elongation at break change | -18 | % | |
| Tensile strength change | -18 | % | |
| Immersion in water -70 hours at 100℃ | ASTM D417 | ||
| Hardness change | -2 | Shore A | |
| Elongation at break change | 1 | % | |
| Tensile strength change | -3 | % | |
| Volume change | 1.3 | % |
Triclamp Seal EPDM without lip
| Type triclampring | Internal diameter | Outer diameter | Standard couplingring | Dimension couplingring | Seal material | Compound | Colour | Article |
|---|---|---|---|---|---|---|---|---|
| mm | mm | |||||||
| Without lip | 22.8 | 50.5 | ASME-BPE 2009 | 1" | EPDM | 559273 | Black | 12751380 |
| Without lip | 22.8 | 50.5 | BS4825 | 1" | EPDM | 559273 | Black | 12936794 |
| Without lip | 22.8 | 50.5 | SMS3017 | DN 25 | EPDM | 559273 | Black | 12936793 |
| Without lip | 35.8 | 50.5 | ASME-BPE 2009 | 1.1/2" | EPDM | 559273 | Black | 12734654 |
| Without lip | 35.8 | 50.5 | BS4825 | 1.1/2" | EPDM | 559273 | Black | 12936806 |
| Without lip | 35.8 | 50.5 | SMS3017 | DN 38 | EPDM | 559273 | Black | 12936805 |
| Without lip | 48.2 | 64 | ASME-BPE 2009 | 2" | EPDM | 559273 | Black | 12751381 |
| Without lip | 60.5 | 77.5 | ASME-BPE 2009 | 2.1/2" | EPDM | 559273 | Black | 12751414 |
| Without lip | 60.5 | 77.5 | BS4825 | 2.1/2" | EPDM | 559273 | Black | 12936818 |
| Without lip | 60.5 | 77.5 | SMS3017 | DN 63.5 | EPDM | 559273 | Black | 12936817 |
| Without lip | 73.1 | 91 | ASME-BPE 2009 | 3" | EPDM | 559273 | Black | 12751382 |
| Without lip | 73.1 | 91 | BS4825 | 3" | EPDM | 559273 | Black | 12936830 |
| Without lip | 73.1 | 91 | SMS3017 | DN 76.1 | EPDM | 559273 | Black | 12936829 |
| Without lip | 97.8 | 119 | ASME-BPE 2009 | 4" | EPDM | 559273 | Black | 12751393 |
| Without lip | 97.8 | 119 | BS4825 | 4" | EPDM | 559273 | Black | 12936842 |
| Without lip | 97.8 | 119 | SMS3017 | DN 101.6 | EPDM | 559273 | Black | 12936841 |
Triclamp Seal EPDM mini
| Type triclampring | Internal diameter | Standard couplingring | Dimension couplingring | Seal material | Compound | Colour | Article |
|---|---|---|---|---|---|---|---|
| mm | |||||||
| Mini | 4.8 | ASME-BPE 2009 | 1/4" | EPDM | 559273 | Black | 12751416 |
| Mini | 8.2 | ASME-BPE 2009 | 3/8" | EPDM | 559273 | Black | 12751417 |
| Mini | 8.2 | ISO1127 | DN 8 | EPDM | 559273 | Black | 12751494 |
| Mini | 9.6 | ASME-BPE 2009 | 1/2" | EPDM | 559273 | Black | 12751415 |
| Mini | 14.2 | ISO1127 | DN 10 | EPDM | 559273 | Black | 12696797 |
| Mini | 16 | ASME-BPE 2009 | 3/4" | EPDM | 559273 | Black | 12696798 |
