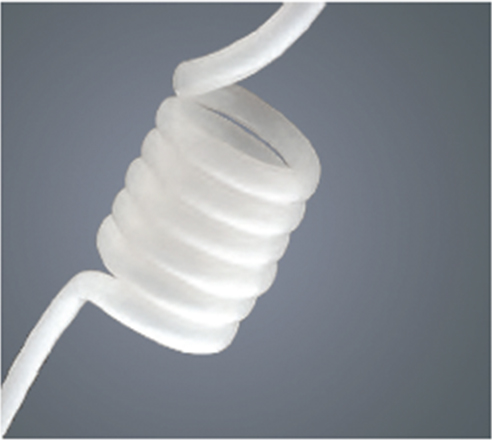

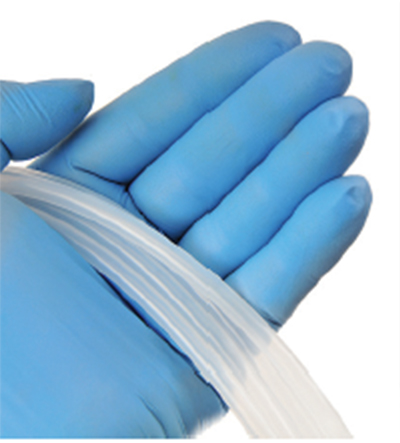

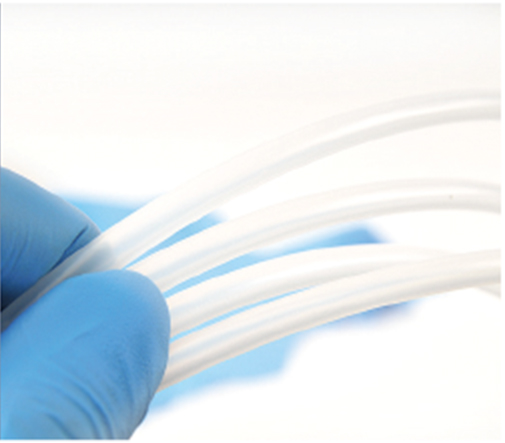

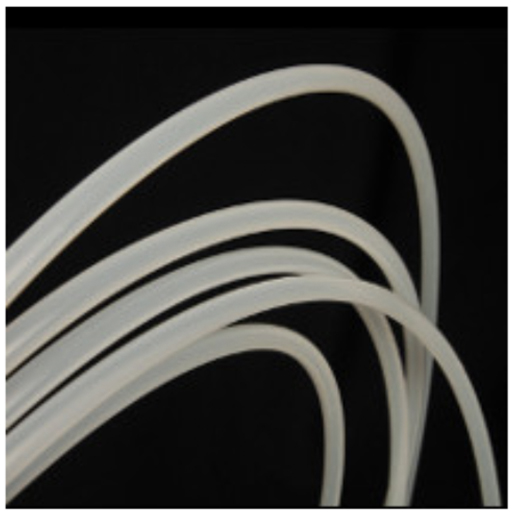

Kynar PVDF软管
Kynar PVDF®拥有优良的物理和化学特性能够满足各类应用需求, 产品符合FDA, USP Class VI, NSF 51, NSF 61, and NSF 14等标准，同时溶出物及TOC析出量极低，拥有极佳的化学相容性，UV稳定性，耐温性能高。PVDF相比Teflon®PTFE更为经济，常用于实验室高纯净度水系统食品饮料行业、半导体等行业

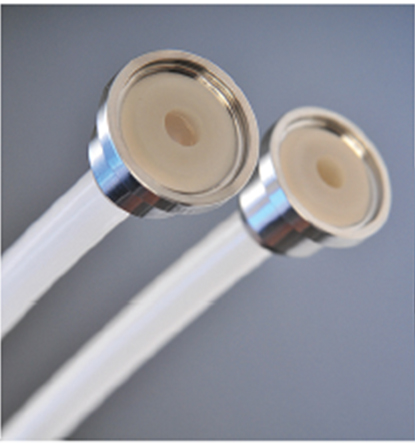

注模接头：
软管与接头注模连接是一种非常理想的洁净连接方式，相比Barb接头成本更低且不存在液体残留减少污染源，TBL的注模接头符合USP Class VI, are BSE/TSE. Animal derived ingredient free等标准请联系我们，改造您现有的工艺我们可为您设计定制全新的流体连接方案
最高温度：135℃
更详细技术参数请咨询我们: Technical Data Brochure
- U.S. Pharmacopoeia Class VI
- Cytotoxicity criteria
- CFR Title 21 Section 177.2600
- Animal-derived-ingredient Free
- CGMP
- Traceability: lot and batch
Kynar PVDF®拥有优良的物理和化学特性能够满足各类应用需求, 产品符合FDA, USP Class VI, NSF 51, NSF 61, and NSF 14等标准，同时溶出物及TOC析出量极低，拥有极佳的化学相容性，UV稳定性，耐温性能高。PVDF相比Teflon®PTFE更为经济，常用于实验室高纯净度水系统食品饮料行业、半导体等行业
注模接头：
软管与接头注模连接是一种非常理想的洁净连接方式，相比Barb接头成本更低且不存在液体残留减少污染源，TBL的注模接头符合USP Class VI, are BSE/TSE. Animal derived ingredient free等标准请联系我们，改造您现有的工艺我们可为您设计定制全新的流体连接方案
最高温度：135℃
更详细技术参数请咨询我们: Technical Data Brochure
- U.S. Pharmacopoeia Class VI
- Cytotoxicity criteria
- CFR Title 21 Section 177.2600
- Animal-derived-ingredient Free
- CGMP
- Traceability: lot and batch
| 产品编码 | 内径 | 外径 | 壁厚 | 弯曲半径 | 工作压力 |
|---|---|---|---|---|---|
| Part Number | ID | OD | Wall | Bending Radius | Max WP@72F |
| Standard Wall | |||||
| F-PVDF-062x125 | 1/16" | 1/8" | 1/32" | 1/2" | 451 PSI |
| F-PVDF-125x187 | 1/8" | 3/16" | 1/32" | 3/4" | 168 PSI |
| F-PVDF-187x250 | 3/16" | 1/4" | 1/32" | 1" | 126 PSI |
| F-PVDF-250x312 | 1/4" | 5/16" | 1/32" | 1-3/4" | 101 PSI |
| F-PVDF-312x375 | 5/16" | 3/8" | 1/32" | 2-1/2" | 84 PSI |
| Heavy Wall | |||||
| F-PVDF-125x250 | 1/8" | 1/4" | 1/16" | 1/2" | 260 PSI |
| F-PVDF-250x375 | 1/4" | 3/8" | 1/16" | 1" | 174 PSI |
| F-PVDF-375x500 | 3/8" | 1/2" | 1/16" | 2" | 130 PSI |
| F-PVDF-500x625 | 1/2" | 5/8" | 1/16" | 3" | 104 PSI |
| F-PVDF-625x750 | 5/8" | 3/4" | 1/16" | 5" | 87 PSI |
| F-PVDF-875x1000 | 7/8" | 1" | 1/16" | 22" | 65 PSI |
| Custom Sizes | |||||
| F-PVDF-170x250 | 0.170" | 1/4" | 0.040" | 1" | 155 PSI |
| F-PVDF-156x250 | 5/32" | 1/4" | 0.047" | 3/4" | 177 PSI |
